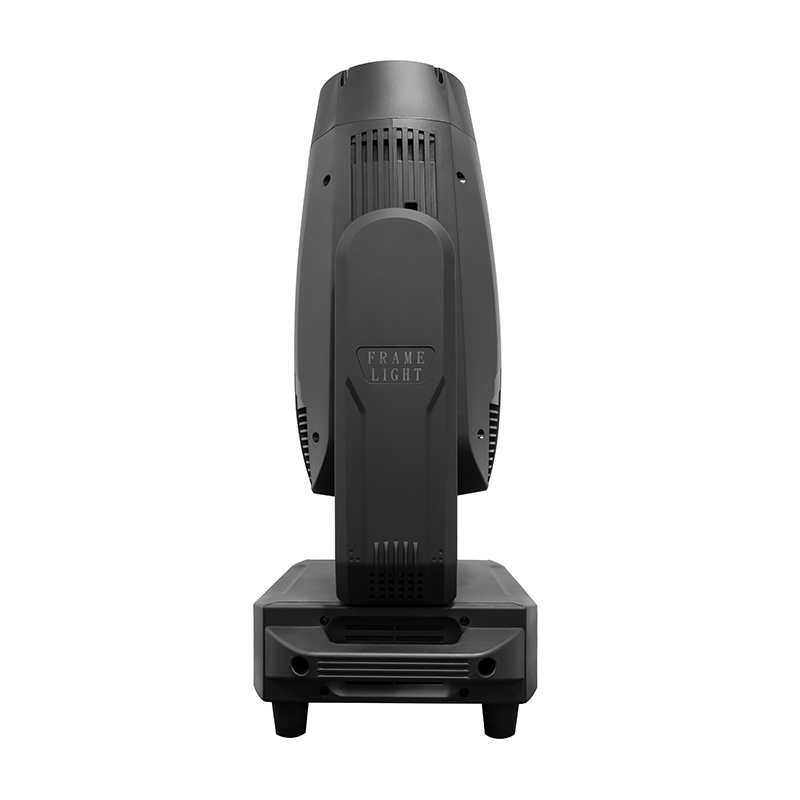

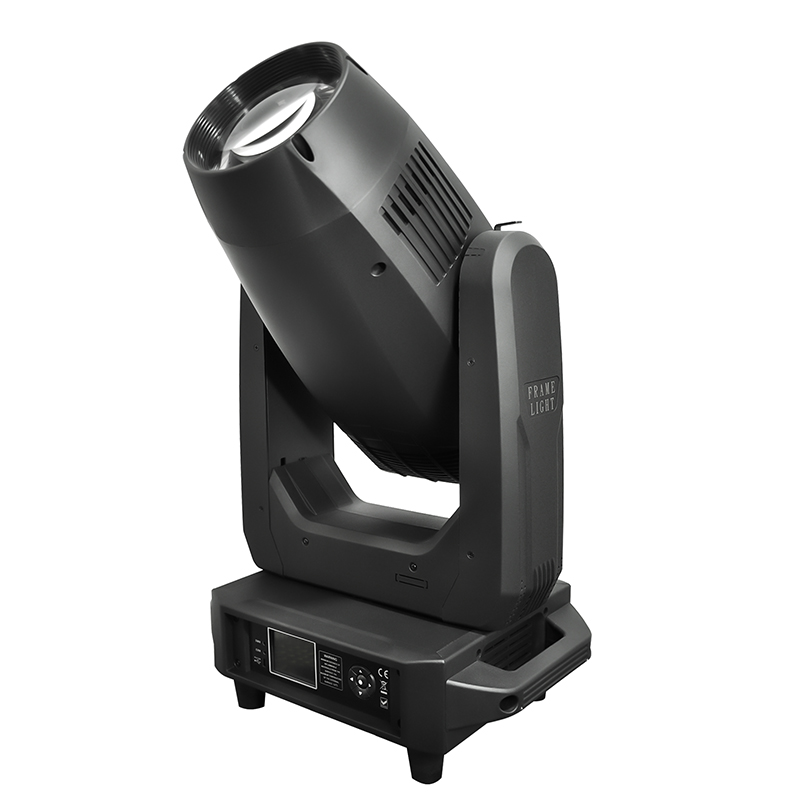

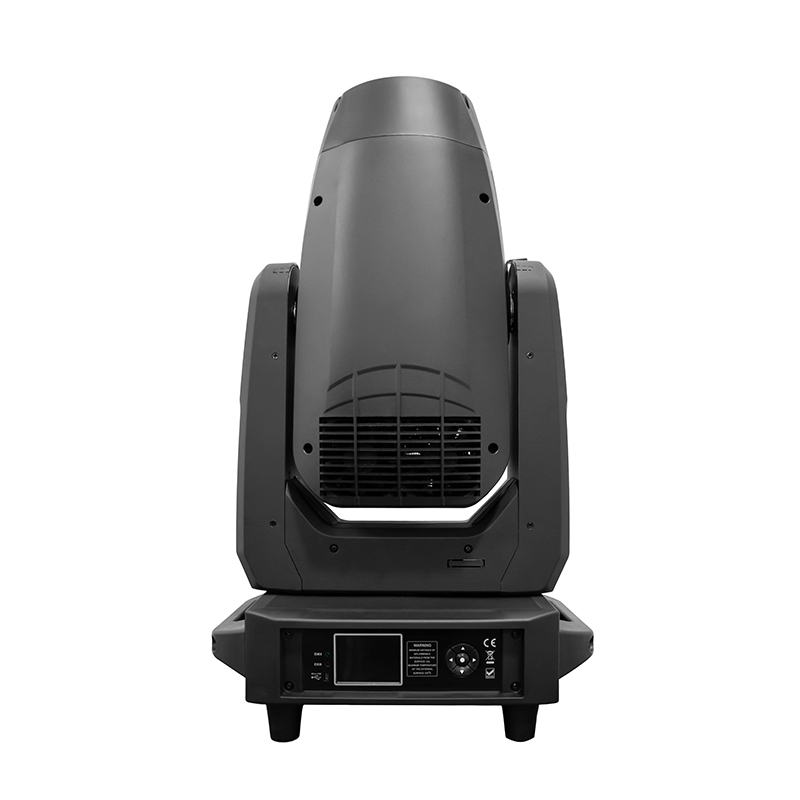

Mini 600W 4in1 BSWF Framing Moving Head Light with CMY CTO

Mini 600W 4in1 Framing Moving Head Light with CMY CTO

● Input Voltage: AC100-240V, 50/60Hz
● Rated Power: 750W
● Light Source: 600W LED Module
● LED Lifespan: 20,000 hours
● Color Temperature: 6500K
● Aperture Diameter: 130mm
● Color Rendering Index (CRI):
Standard Mode Ra>70; High CRI Mode Ra>90
● Signal Interface: 3-pin XLR / 5-pin XLR (Selectable)
● Control Modes: DMX512, RDM, Auto-run, Master/Slave
● Channel Mode: 36 International Standard DMX512 Channels
● Display: 2.8-inch Touch LCD Screen (EN/CN), 180° Rotation
● Color Mixing System: Independent CMY Color Mixing System
● Color Temperature Adjustment: CTO 2500–6500K Linear Adjustment
● Prism: 4-facet Prism + 6-facet Linear Prism
● Color Wheel: 6 Colors + Open (White) + Dynamic Effects Wheel (e.g., Flowing Water)
● Fixed Gobo Wheel: 6 Fixed Gobos + Open (White)
● Rotating Gobo Wheel: 7 Interchangeable Gobos + Open (White)
● Framing System: 4 Independent Framing Shutters; Each shutter is individually controllable (blackout) and rotatable by 90°
● Frost System: 0–100% Linear Frost
● Iris System: 6%–100% Smooth Adjustment
● Zoom System: 6.7°–40° Linear Zoom
● Dimming System: 0–100% Linear Adjustment
● Strobe System: Up to 25Hz; Selectable Random Strobe and Pulse Strobe effects
● Pan (Horizontal Scan): 540° (16-bit Precision)
● Tilt (Vertical Scan): 270° (16-bit Precision)
● IP Rating: IP20
● Operating Environment: 0–45°C
● Compact size:667 × 274 × 393 mm; N.W: 23.5 KG
● Carton Dimensions: 750 × 360 × 465 mm
● Gross Weight: 27.5 kg
● With folding clamps accessory

The 600W 4in1 framing moving head light features CMY color mixing, CTO 2500-6500K, and a full framing system with 4 independent shutters. The 6.7°-40° zoom, 4+6-facet prisms, and frost effects deliver versatile beam, spot, and wash outputs. DMX512/RDM control. In compact size, convenient for installationn. Ideal for theaters, TV studios, and concerts. LUME Stage Lighting.
